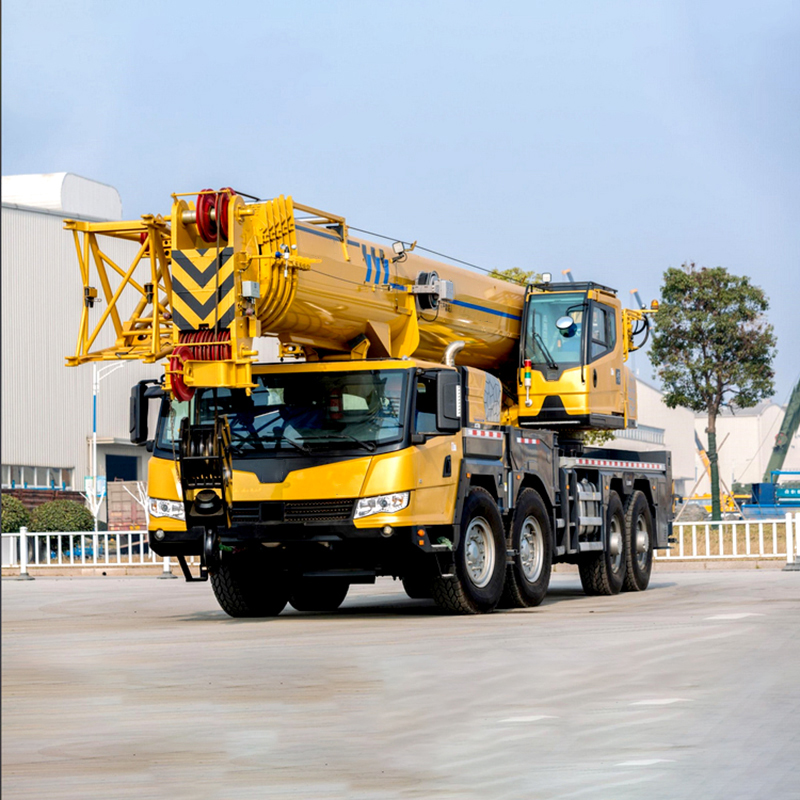

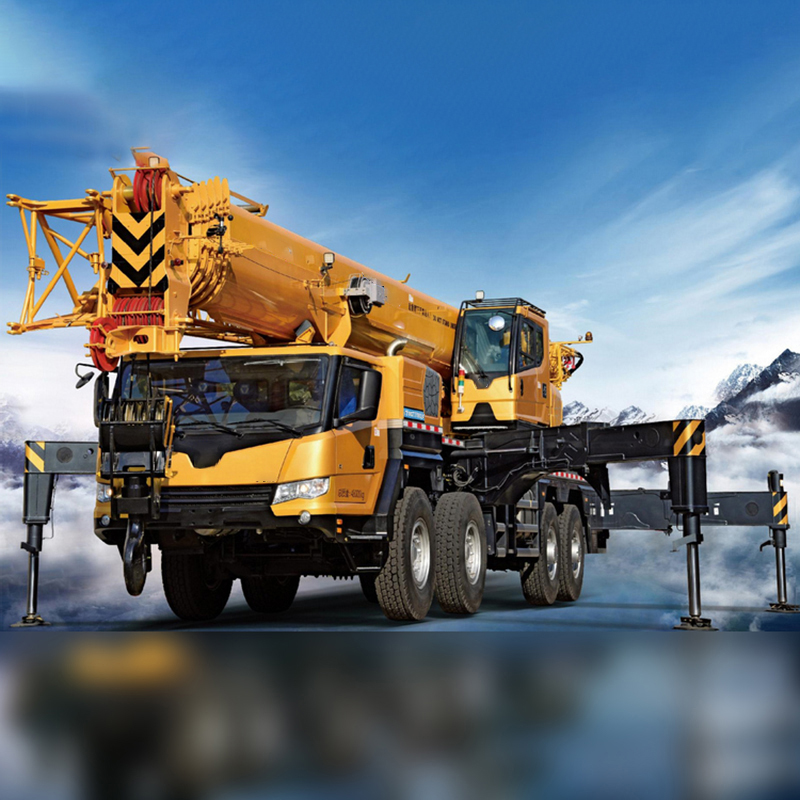

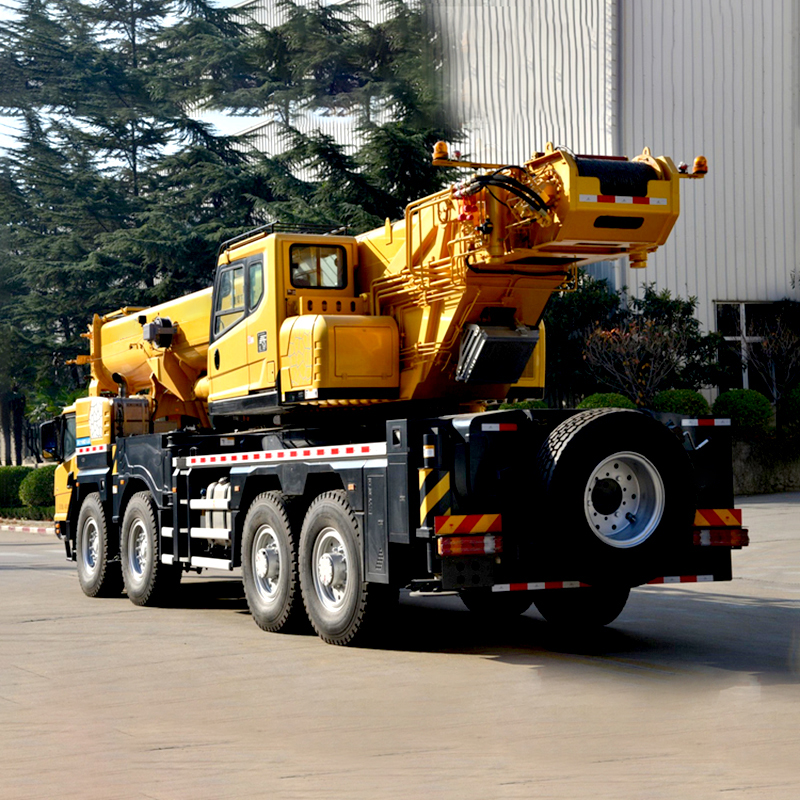

| XCT80L6 | |||||
|---|---|---|---|---|---|
| Weight Parameters | |||||
| Axle | 1 | 2 | 3 | 4 | Total weight |
| t | 12 | 12 | 12 | 12 | 48 |
| * The 1.5 ton Counterweight should be put on the chassis deck, not taking any other counterweight and rearview mirror. | |||||
| * The main block should be fastened in front of the chassis cab, and not taking any other blocks. | |||||
| Hook Configurations | |||||
| Hook | No. of lines | Weight kg | Dimensions mm | Remarks | |
| 80t | 12 | 700 | 1735×554×520 | Single hook, Standard | |
| 55t | 8 | 470 | 1600×520×370 | Single hook, Optional | |
| 7t | 1 | 210 | 717×370×370 | Single hook, Standard | |
| Working Speeds & Performance | |||||
| 385/95 R 25(14.00 R 25) | Max Gradeability: 45% | ||||
| Drive Style | Working speed | Max. single line pull | Rope diameter/length | ||
| Main / Aux. Hoist | 0-145 m/min, no load, 4th layer | 65.7kN | 20 mm/240 m | ||
| 0-90 m/min, no load, 4th layer | 63.7kN | 20 mm/180 m | |||
| Slewing Speed: 0-2.0 r/min | |||||
| Boom Elevation: Approx. 55s for boom elevation from -0.5° to 81° | |||||
| Boom Extension: Approx. 430s for boom extension from 11.85m to 55m | |||||
